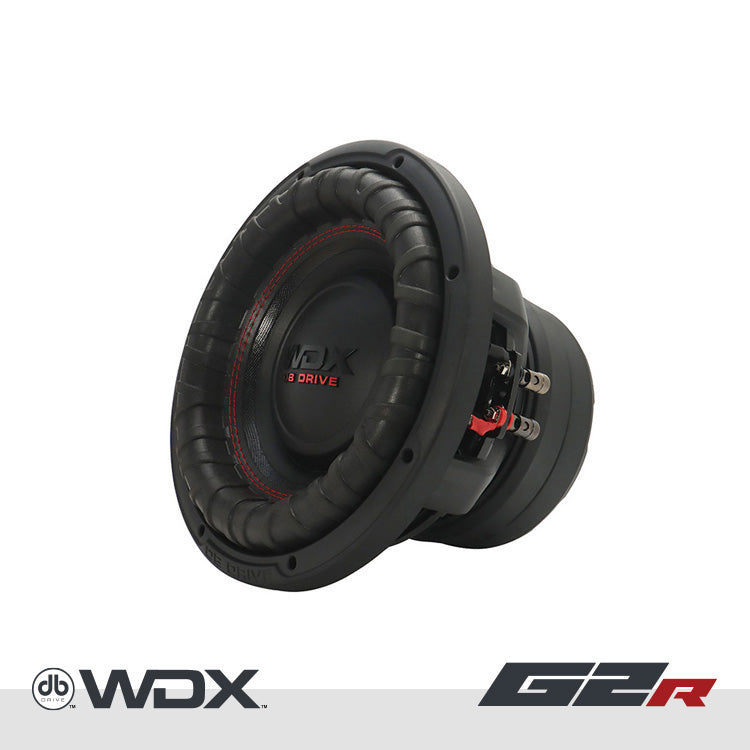

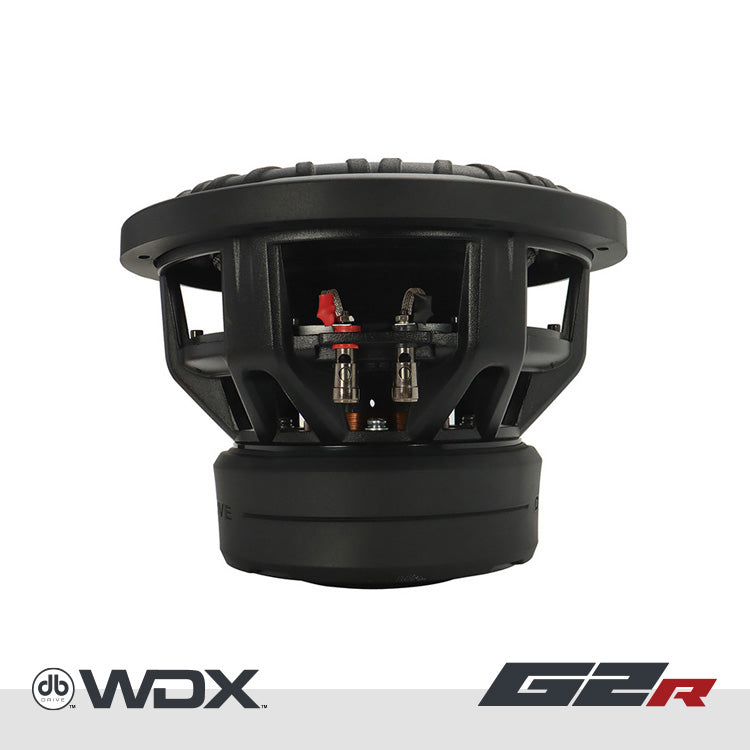

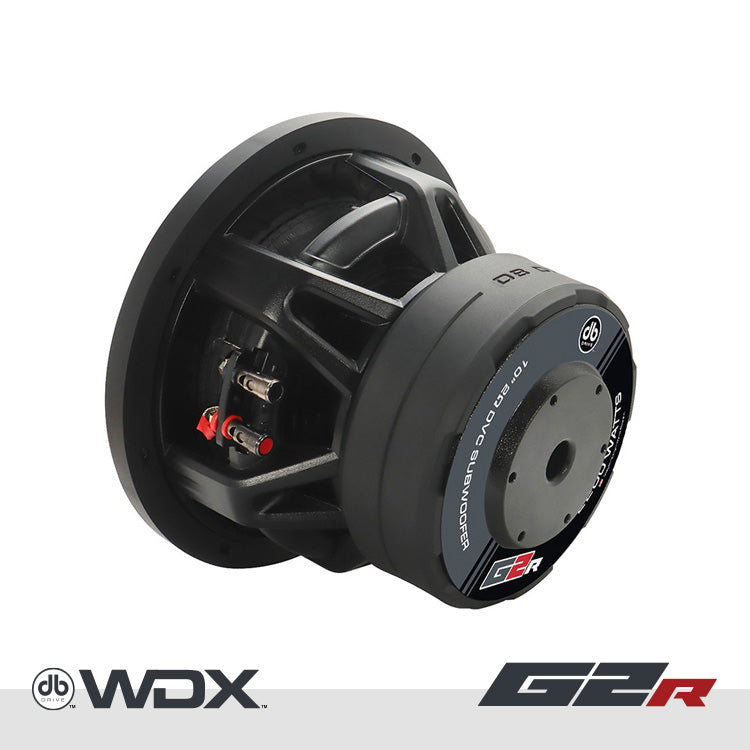

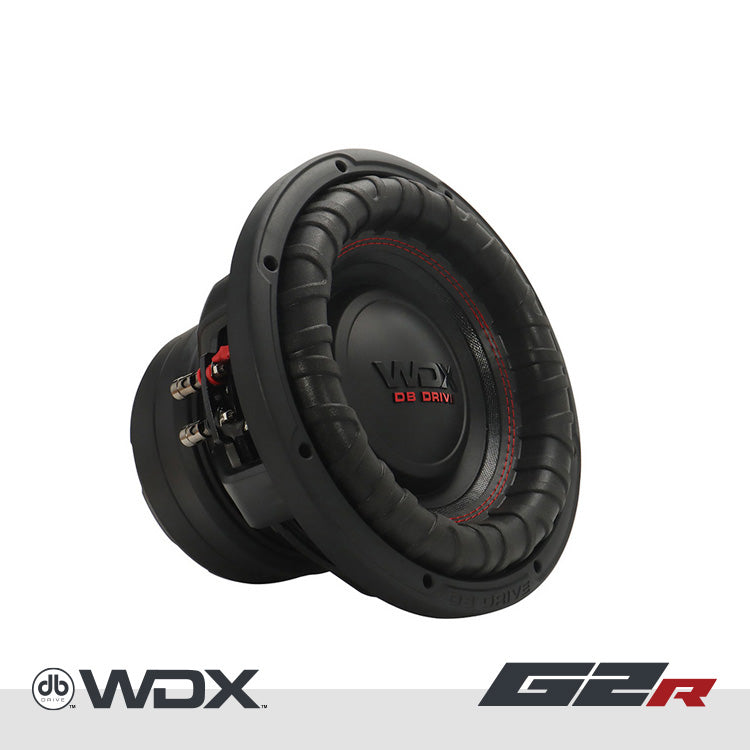

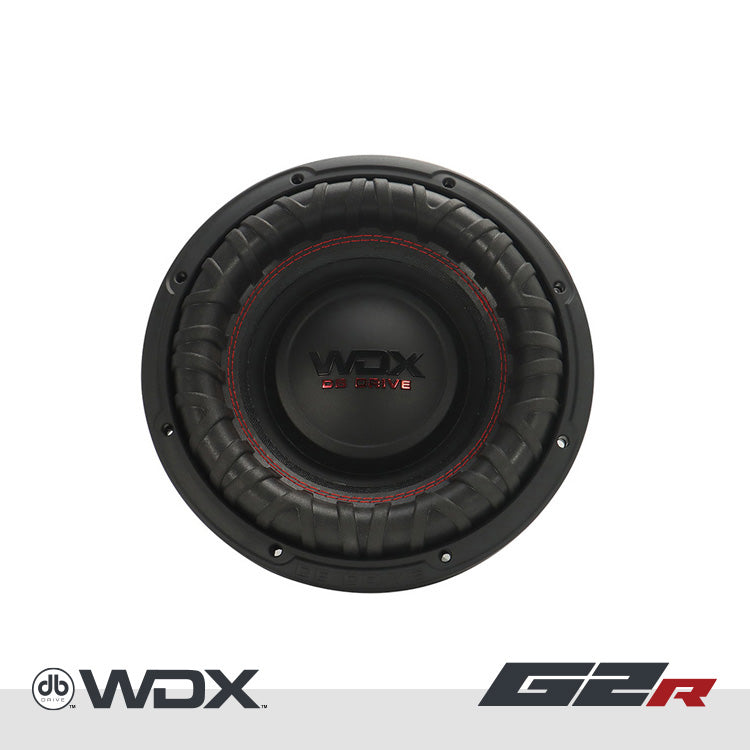

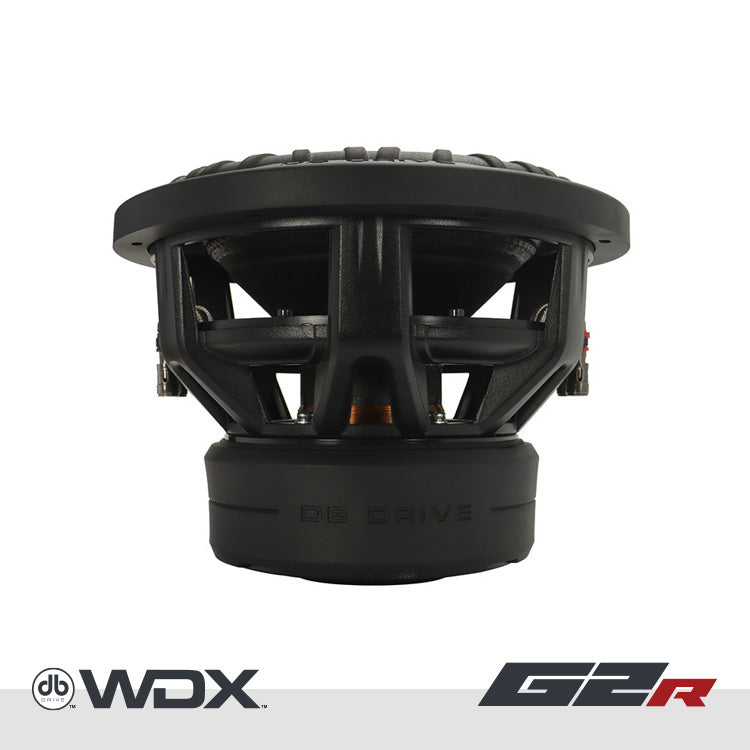

DB Drive WDX10G2R.2 : 10 in. Dual 2-Ohm Subwoofer

• Dynamic Power Handling:  2200 Watts

• Nominal Power Handling: 1100 Watts

• Impedance: Dual 2? Voice Coil

• Resonant Frequency (fs): 32.29 Hz

• D.C. Voice Coil Resistance (Re): 2 x 2?

• Mechanical Quality Factor (Qms): 3.70

• Electrical Quality Factor (Qes): 0.96

• Total Quality Factor (Qts): 0.76

• Equivalent Air Volume (Vas): 16.71 L

• Mechanical Compliance of Suspension (CMS): 92.670 mm/N

• Mass of Diaphragm/Coil (Mms): 262.19 g

• Force Factor (BL): 14.89

• Sound Pressure Level (SPL): 79.6 dB


Introducing the WDX10G2R.2, our premium 10-inch woofer with dual 2-ohm voice coils for efficient power handling. With a high temperature voice coil, non-pressed paper cone, reinforced foam surround, and die-cast aluminum basket, experience impressive bass and clear sound at a resonant frequency of 32.29 Hz.

Product Manual PDF
