Feel the power with every beat – DB Drive WDX8G0.2, where performance meets precision.
Unleash the true potential of your sound system with the DB Drive WDX8G0.2, an 8-inch stamped frame woofer that redefines the subwoofer experience. Crafted with a high-temperature voice coil and reinforced paper cone, this powerhouse is designed to deliver exceptional sound quality and durability. The double-stitched foam surround and dual poly-cotton dampeners ensure precise audio reproduction, while the stamped cast steel vented basket and protective magnet cover provide robust protection and longevity. With a massive 80 oz. magnet and large gauge compression terminals, the WDX8G0.2 offers an impressive max power of 800 watts and nominal power of 400 watts. Whether you're a casual listener or a true audiophile, this subwoofer's dual 2ohms voice coil impedance ensures optimal performance for any setup. Elevate your audio experience and feel every beat with the DB Drive WDX8G0.2 – where performance meets precision.
Features
- 2" High-Temperature Voice coil
- Reinforced paper cone
- Dual poly-cotton dampeners
- Stamped Cast basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications

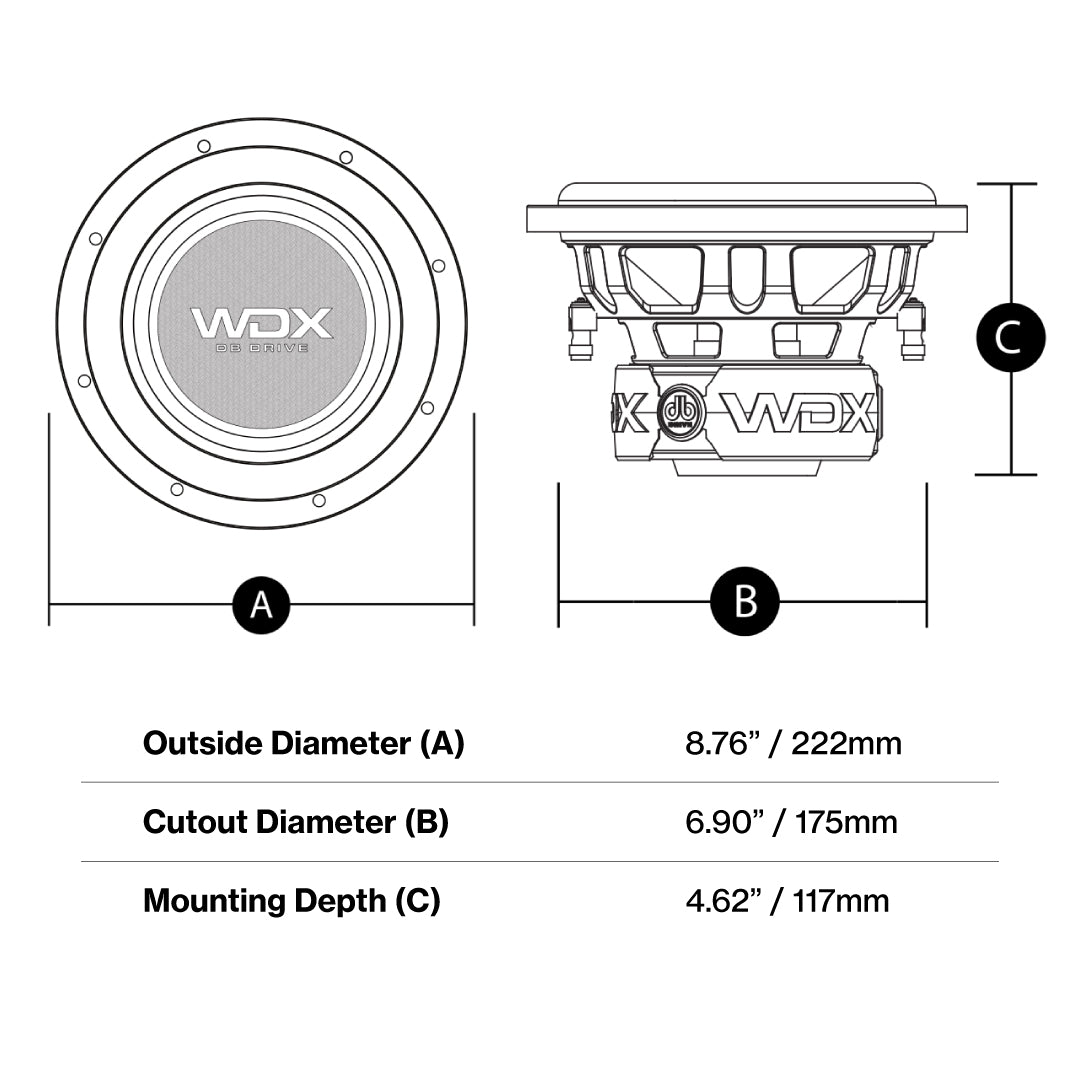

| Structure |
8” (20.3cm) Woofer |
| Dynamic Power Handling |
800 Watts |
| Nominal Power Handling |
400 Watts |
| Impedance |
Dual 2ohms Voice Coil |
Parameters
| Resonant Frequency (fs) |
42.074Hz |
| D.C. Voice Coil Resistance (Re) |
1.6" x 2 |
| Mechanical Quality Factor (Qms) |
2.651 |
| Electrical Quality Factor (Qes) |
0.481 |
| Total Quality Factor (Qts) |
0.407 |
| Equivalent Air Volume to Cms (Vas) |
9.554 m |
| Mass of Diaphragm/Coil (Mms) |
94.9011 g |
| Force Factor (Bl) |
6.851 |
| Sound Pressure Level (SPL) |
83.6dB |
Product Manual
