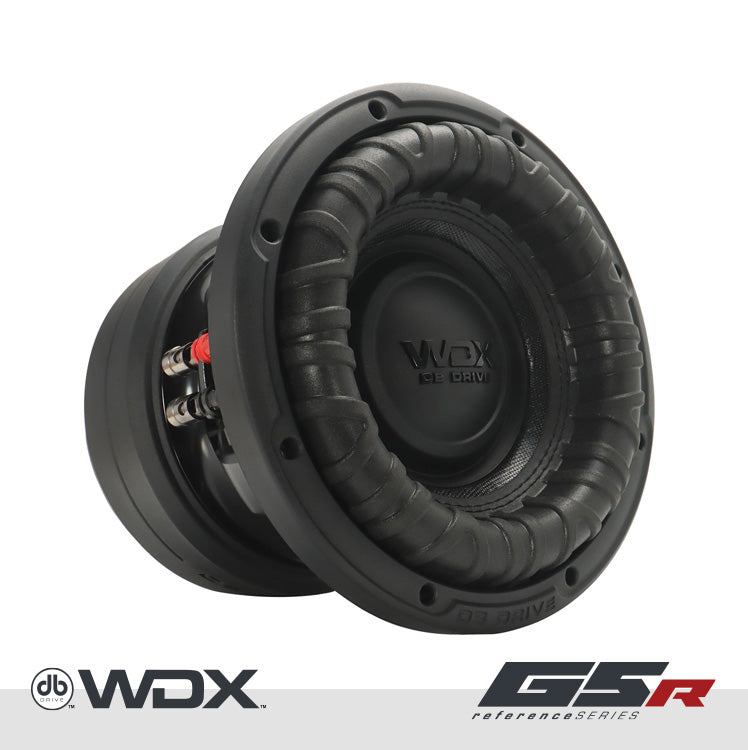

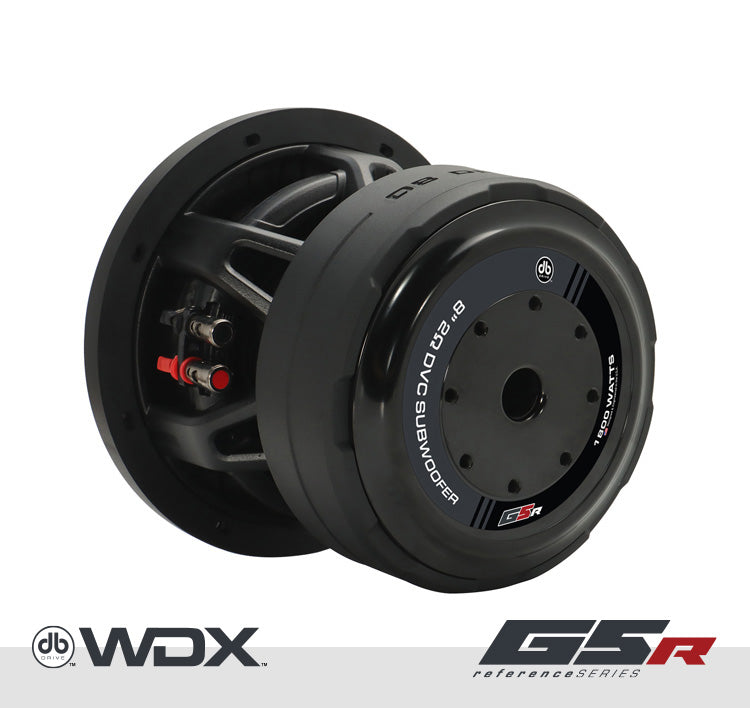

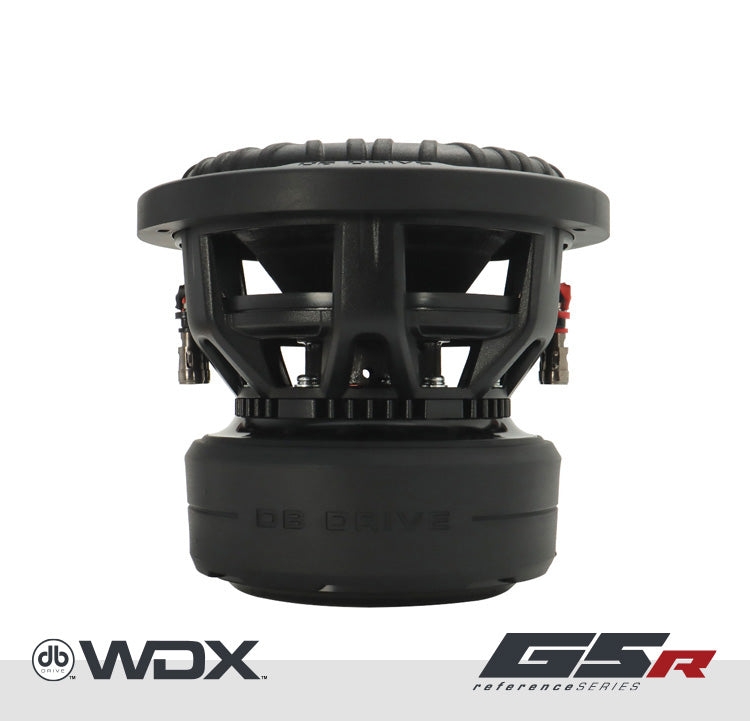

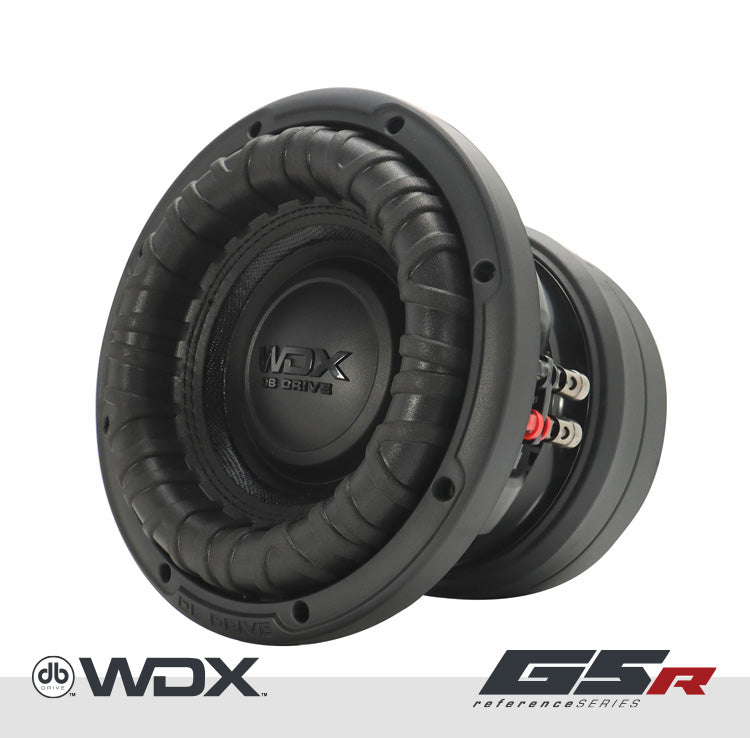

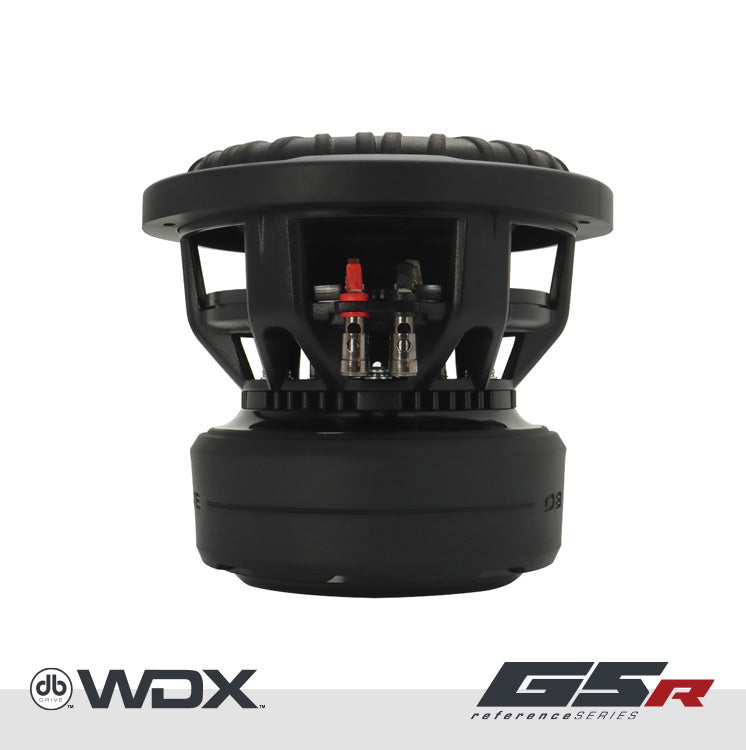

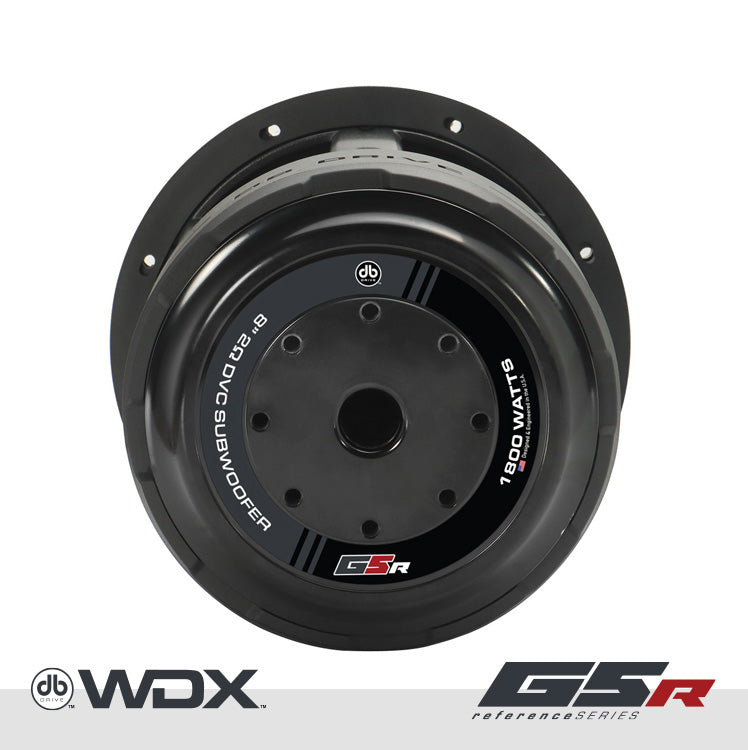

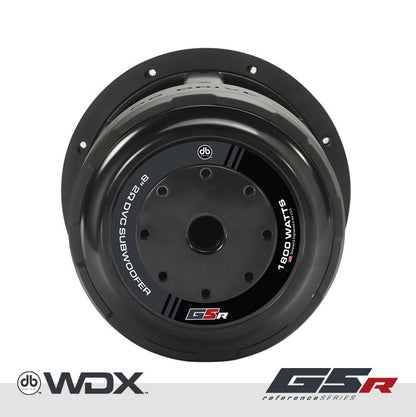

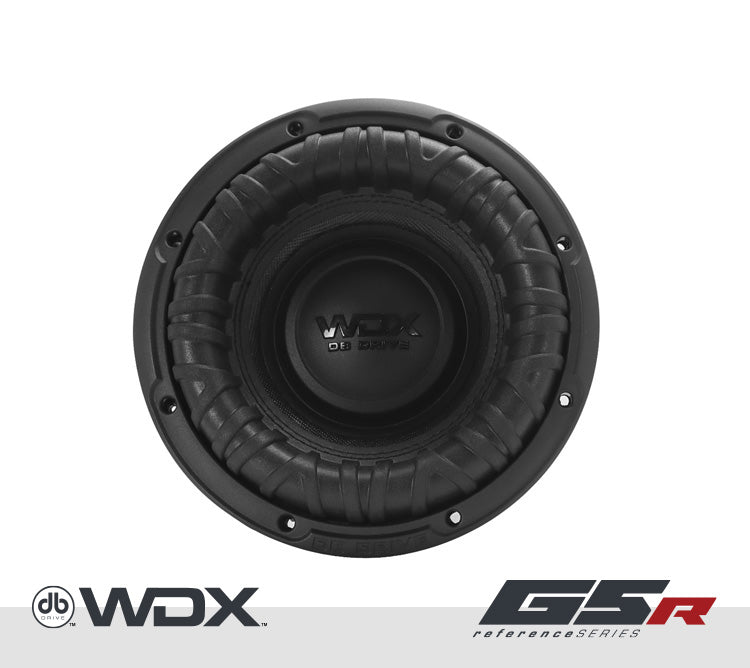

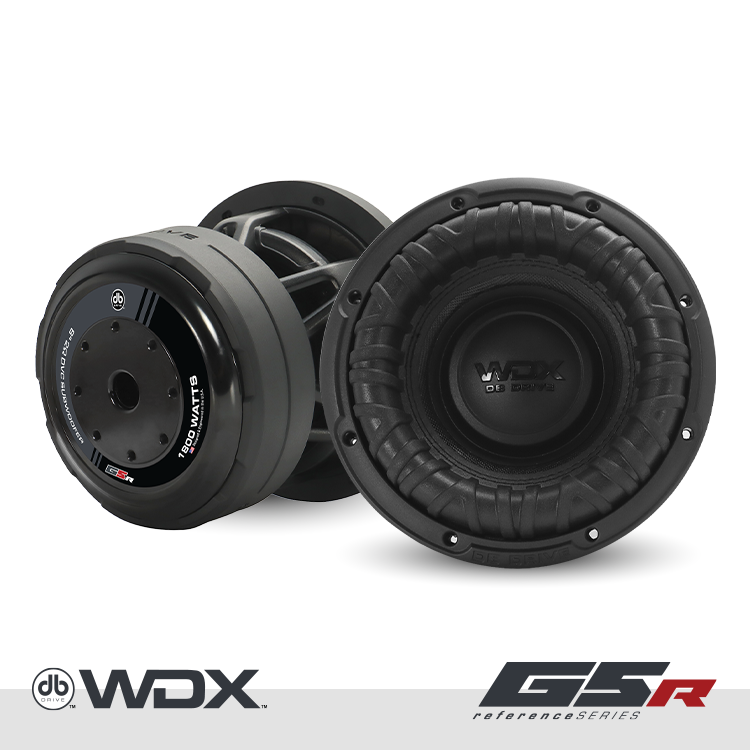

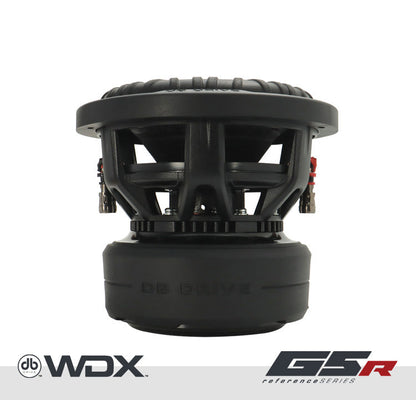

Designed for true bass enthusiasts, the WDX Reference subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. Built for Bass: Power handling up to 1800 watts dynamic (900 watts nominal) The WDX8G5R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
Features
- 2.5? 4 layers Anodized aluminum high-temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
- Dynamic Power Handling: 1800 Watts
- Nominal Power Handling: 900 Watts
- Impedance: Dual 2? Voice Coil
- Resonant Frequency (fs): 42.45Hz
- D.C. Voice Coil Resistance (Re): 2 x 2?
- Mechanical Quality Factor (Qms): 2.54
- Electrical Quality Factor (Qes): 0.78
- Total Quality Factor (Qts): 0.60
- Equivalent Air Volume (Vas): 3.76 L
- Mechanical Compliance of Suspension (CMS): 65.504 mm/N
- Mass of Diaphragm/Coil (Mms): 214.64 g
- Force Factor (BL): 17.11
- Sound Pressure Level (SPL): 77.5 dB
