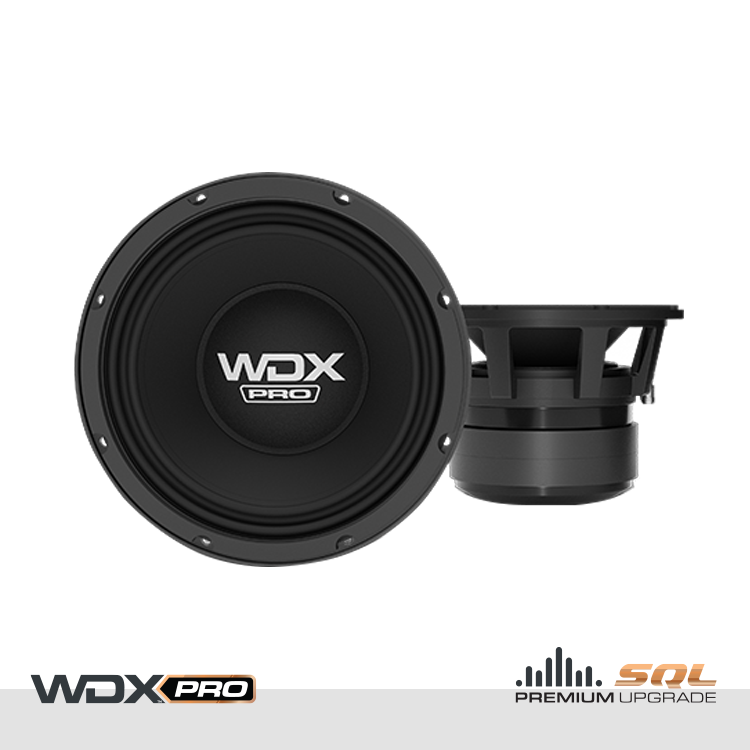

The WDXPRO-MB10-4 is a 10-inch midbass speaker engineered for extreme high-output car audio systems. It features a 3.0" high-temperature voice coil with a shorting ring, paired with a ferrite oxide magnet for superior power handling. The treated paper cone and cloth surround are optimized to deliver precise midbass frequency response and exceptional output performance. With a dynamic power handling of 2000 watts and a nominal power rating of 1000 watts, this speaker is built for unmatched performance and durability.
Features
- 4" High Temperature Voice Coil with Shorting Ring
- Neodymium magnet for higher efficiency
- Treated Paper Cone with Cloth Surround
- Extreme Output Capability
- Die-Cast Aluminum Basket
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
- Dynamic Power Handling: 3500 Watts
- Nominal Power Handling: 1500 Watts
- Impedance: 4? Voice Coil
- Resonant Frequency (fs): 83.7 Hz
- D.C. Voice Coil Resistance (Re): 4?
- Mechanical Quality Factor (Qms): 3.22
- Electrical Quality Factor (Qes): 0.54
- Total Quality Factor (Qts): 0.46
- Equivalent Air Volume to Cms (Vas): 7.6 L
- Mass of Diaphragm/Coil (Mms): 75.0 g
- Force Factor (BL): 14.4
- Sound Pressure Level (SPL): 91.1 dB
