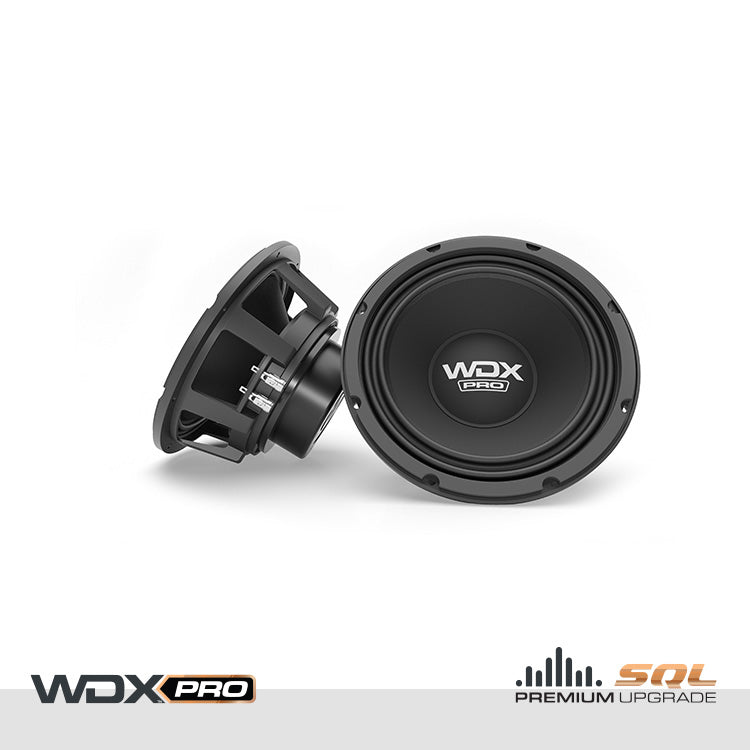

The WDXPRO-MBN10-8 is a 10-inch midbass speaker engineered for extreme high-output car audio systems. It features a 3.0" high-temperature voice coil with a shorting ring, paired with a Neodymium magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 2000 watts and a nominal power rating of 1000 watts, this speaker is built for unmatched performance and durability.
Features
- 3.0" High-Temperature Voice Coil with Shorting Ring
- Neodymium magnet for higher efficiency
- Treated Paper Cone with Cloth Surround
- Extreme Output Capability
- Die-Cast Aluminum Basket
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
- Dynamic Power Handling: 2000 Watts
- Nominal Power Handling: 1000 Watts
- Impedance: 8? Voice Coil
- Resonant Frequency (fs): 78.5 Hz
- D.C. Voice Coil Resistance (Re): 8?
- Mechanical Quality Factor (Qms): 2.89
- Electrical Quality Factor (Qes): 0.47
- Total Quality Factor (Qts): 0.41
- Equivalent Air Volume to Cms (Vas): 13.0 L
- Mass of Diaphragm/Coil (Mms): 50.2 g
- Force Factor (BL): 16.5
- Sound Pressure Level (SPL): 93.1dB
- Dimensions
- Outside Diameter: 10.46"/ 265.60 mm
- Cutout Diameter: 9.23"/ 234.41 mm
- Mounting Depth: 5"/ 127 mm
