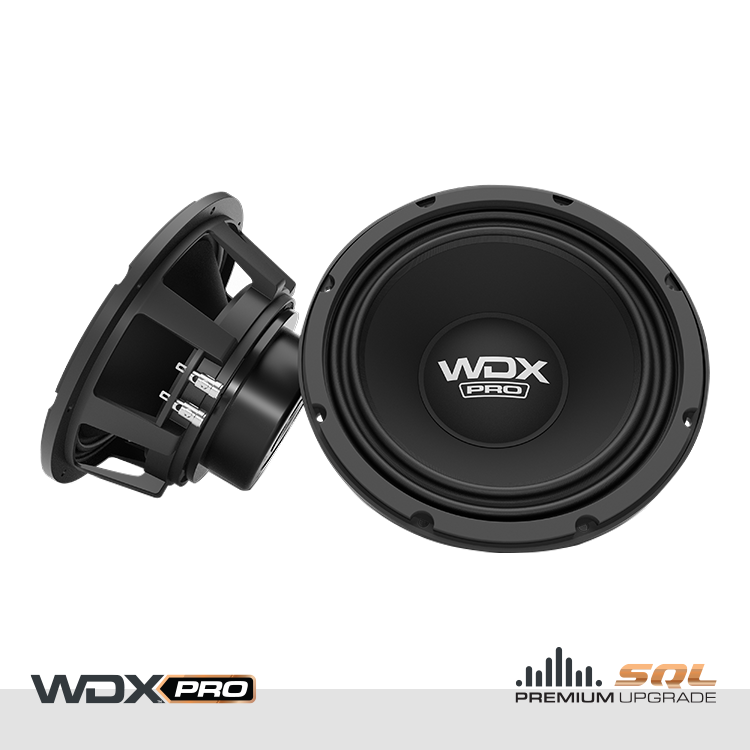

The WDXPRO-MBN12-8 is a 12-inch midbass speaker engineered for extreme high-output car audio systems. It features a 4.0" high-temperature voice coil with a shorting ring, paired with a Neodymium magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 6000 watts and a nominal power rating of 3000 watts, this speaker is built for unmatched performance and durability.
Features
- 4.0" High Temperature Voice Coil with Shorting Ring
- Neodymium magnet for higher efficiency
- Treated Paper Cone with Cloth Surround
- Extreme Output Capability
- Die-Cast Aluminum
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: 8? Voice Coil
- Resonant Frequency (fs): 59 Hz
- D.C. Voice Coil Resistance (Re): 8?
- Mechanical Quality Factor (Qms): 3.94
- Electrical Quality Factor (Qes): 0.42
- Total Quality Factor (Qts): 0.38
- Equivalent Air Volume to Cms (Vas): 32.6 L
- Mass of Diaphragm/Coil (Mms): 82.8 g
- Force Factor (BL): 19.5
- Sound Pressure Level (SPL): 93.9 dB
- Dimensions
- Outside Diameter: 12.32"/ 313 mm
- Cutout Diameter: 11.15"/ 283.12 mm
- Mounting Depth: 5.39"/ 137 mm
